PROZ790SWIFI

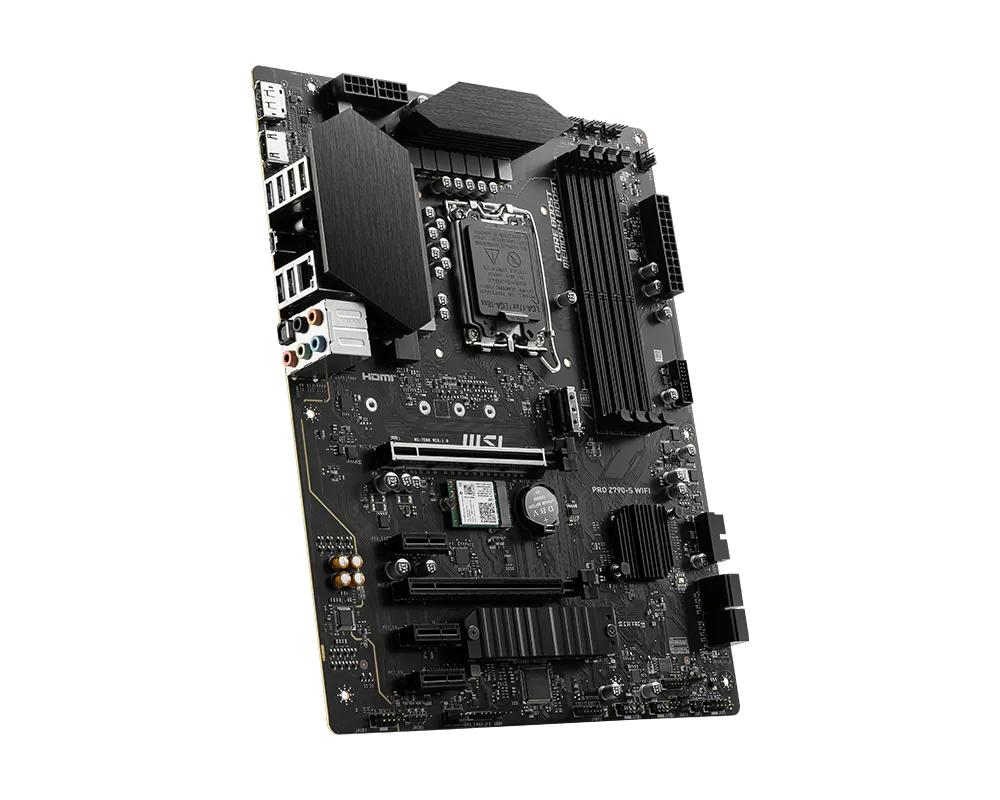

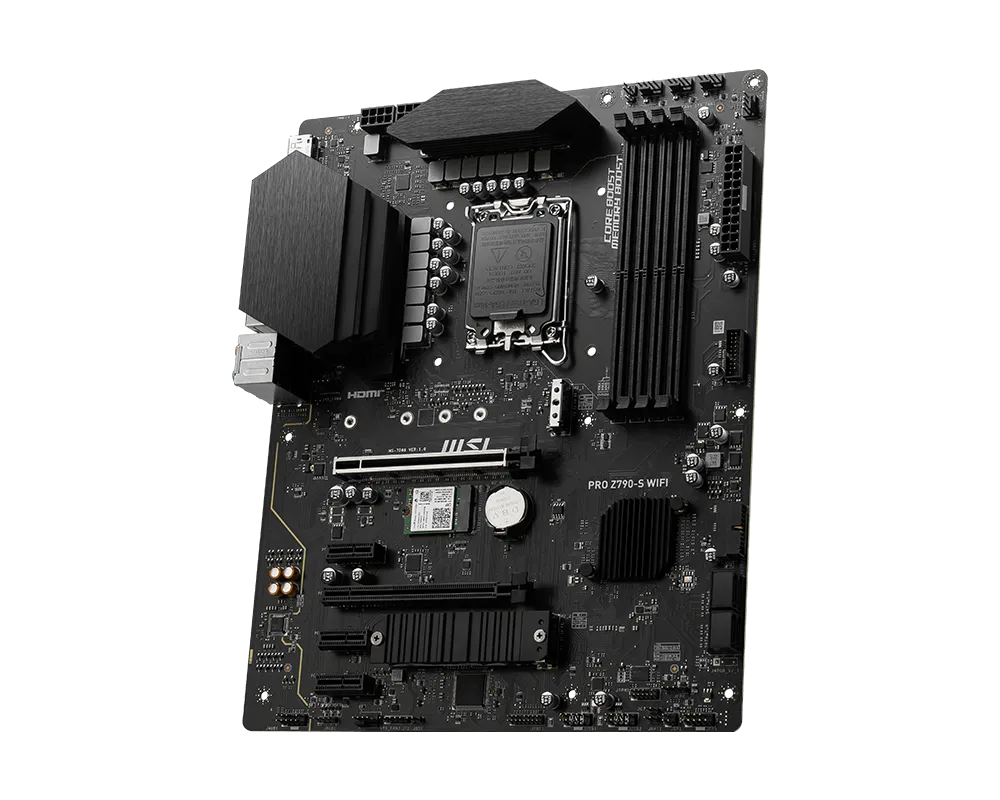

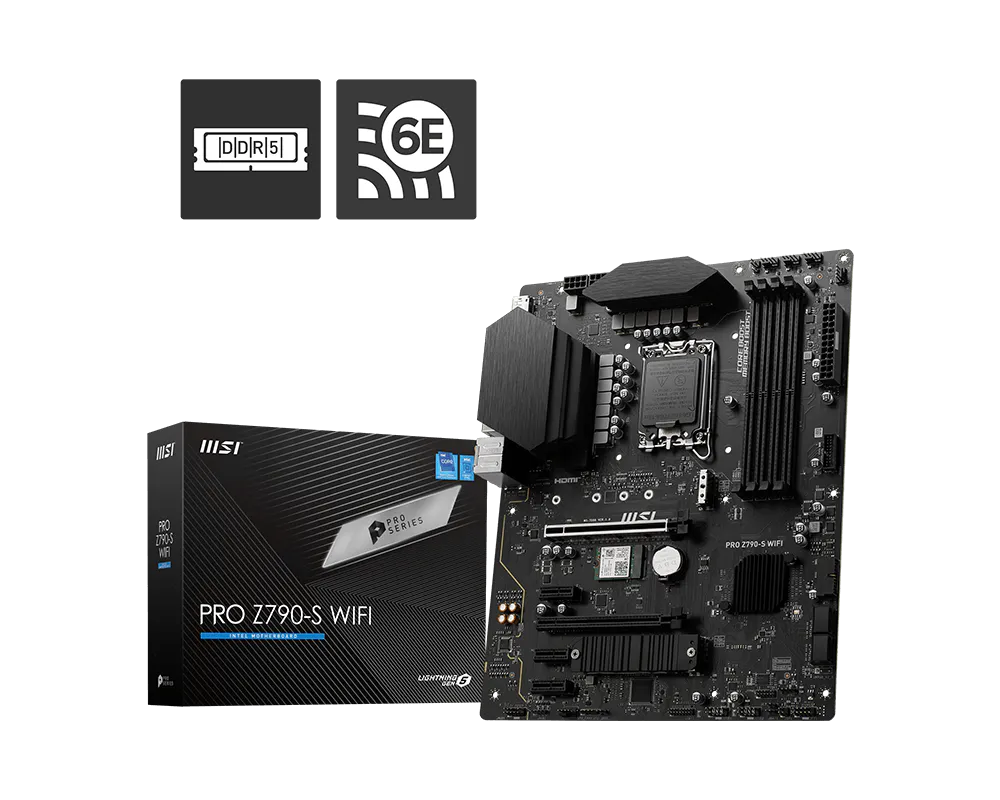

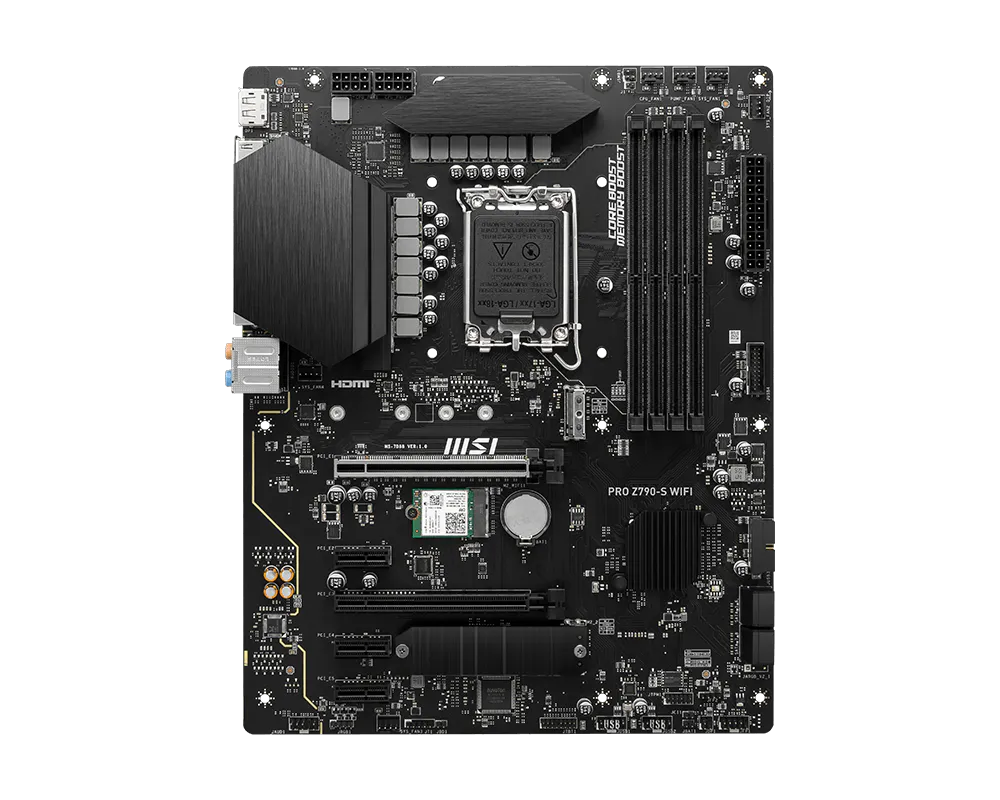

MSI Pro Z790-S WIFI Intel LGA 1700 ATX Motherboard
The MSI Pro Z790-S WIFI is a high-performance ATX motherboard designed to support Intel® 12th, 13th, and 14th Generation Core™ processors through the LGA 1700 socket. Powered by the Intel Z790 chipset, it delivers exceptional stability, advanced connectivity, and reliable performance for gaming, content creation, and professional workloads.
Built with support for high-speed DDR5 memory, the motherboard enables faster data processing and improved system responsiveness. PCIe 5.0 technology provides enhanced bandwidth for the latest graphics cards and storage devices, ensuring your system is ready for future upgrades. Integrated Wi-Fi connectivity offers convenient wireless networking, while multiple USB ports and expansion slots provide flexibility for peripherals and additional components.
MSI’s PRO series design focuses on durability, efficiency, and ease of use, featuring advanced thermal solutions and premium-quality components to maintain stable performance under demanding conditions. Whether you are building a powerful workstation, gaming PC, or productivity-focused system, the MSI Pro Z790-S WIFI delivers the features and reliability needed for a modern desktop build.
This motherboard is an excellent choice for users seeking a dependable, feature-rich foundation for a high-performance Intel-based PC.
| Chipset | INTEL Z790 |
|---|---|
| CPU | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700 |
| Memory | 4x DDR5, Maximum Memory Capacity 256GB Memory Support DDR5 6600+(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 6600+ MHz • 1DPC 2R Max speed up to 6400+ MHz • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Intel® XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| Onboard Graphics | 1x HDMI™ Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Slot | 2x PCI-E x16 slot 3x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
| Storage | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| USB | 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 1x USB 20Gbps Type C (Rear) |
| LAN | Realtek® RTL8125BG 2.5Gbps LAN |
| Internal IO | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports |
| WIRELESS LAN & BLUETOOTH | Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2_WIFI1 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3, FIPS, FISMA * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. |

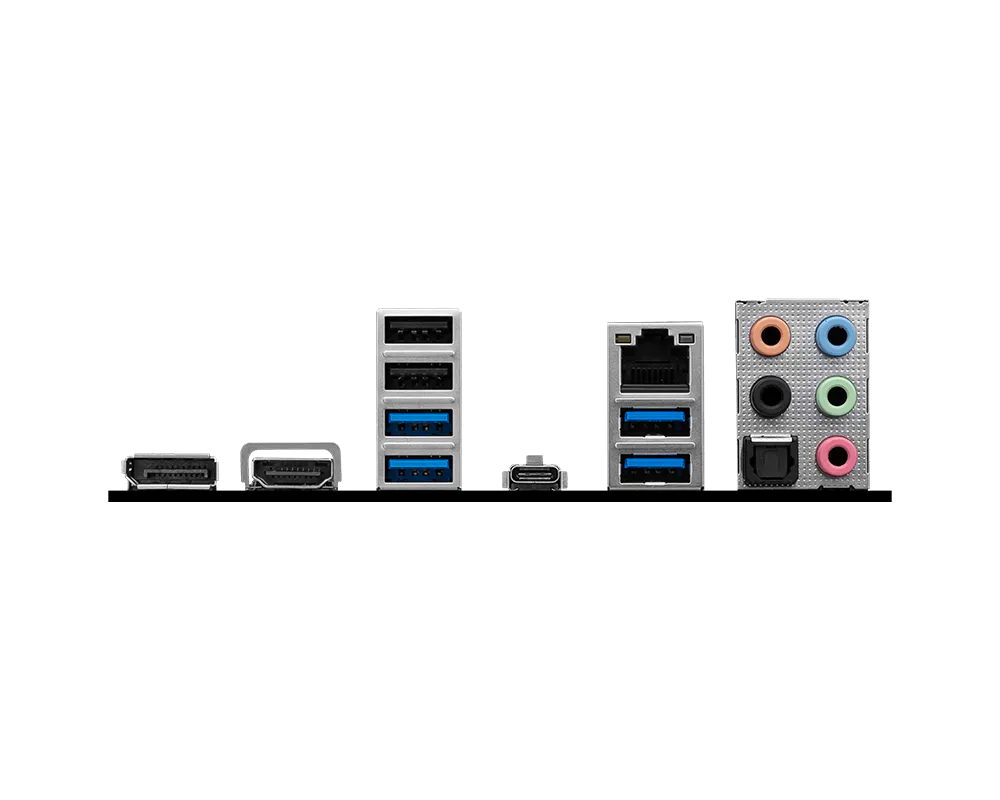

| BACK PANEL PORTS |
|
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| BOX CONTENT |  |
| PCB Info | ATX 243.84mmx304.8mm |
| Specification | Details |
|---|---|
| Brand: | MSI |
| Socket Type: | LGA 1700 |
| Chipset: | Intel Z-series |
| Form Factor: | ATX |
| RAM Type: | DDR5 |
| Max RAM Capacity: | 128GB |
| Expansion Slots: | PCIe 5.0 |
| Price Range | ₹10000 - ₹20000 |
