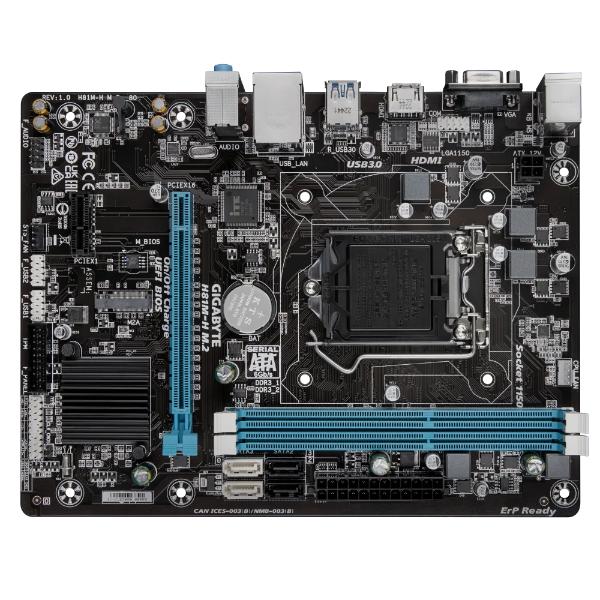

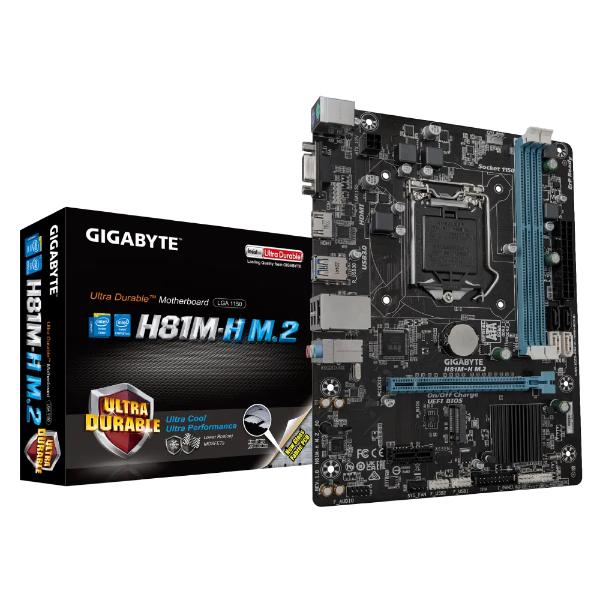

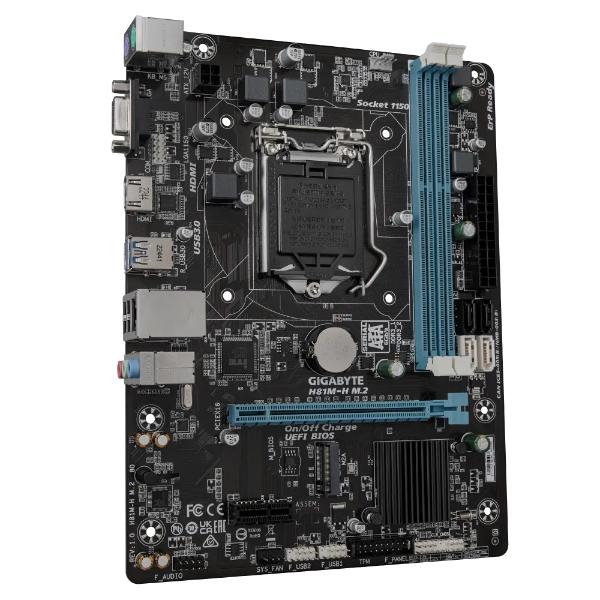

H81M-HM.2
GIGABYTE 8 Series motherboards support the latest 4th Generation Intel® Core™ processors, bringing together a unique blend of features and technologies that offer the absolute ultimate platform for your next PC build. From high current capable power delivery, performance-enhancing caching technologies, exclusive high-end audio features, advanced networking and device charging, GIGABYTE 8 series motherboards are in a class of their own.
The latest Intel 8 Series platform offers significant improvements in performance and power consumption with the latest 4th generation Intel® Core™ processors and Intel® H81 chipsets. As well as a boost in overall productivity, the latest HD4600 Intel® processor graphics provide significantly higher frame rates in the latest DX11 3D game titles.
GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.
GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential.
GIGABYTE Ultra Durable™ debuts on GIGABYTE motherboards, with a range of features and component choices that provide record-breaking performance, cool and efficient operation and extended motherboard lifespan.
|
|
GIGABYTE uses Solid Caps (Capacitors) for CPU VRM and Low RDS(on) MOSFETs which are rated to work at higher temperatures to provide a longer lifespan.
|
||||||
Humidity can play havoc on a motherboard’s circuitry.GIGABYTE’s new Glass Fabric PCB design helps protect against electrical shorts due to humidity by reducing the gaps in spacing between PCB filaments.
GIGABYTE also uses Anti-Surge ICs to protect the motherboard against power surges.
GIGABYTE motherboards feature High Resistance ICs which help protect the motherboard against electrostatic discharge.
| Component | Specification |
| CPU | Supports Intel® Core™ i7/i5/i3 Processors, Pentium® Processors, Celeron® Processors (LGA1150) (L3 cache varies with CPU, refer to "CPU Support List") |
| Chipset | Intel® H81 Express Chipset |
| Memory | 2 x DDR3 DIMM sockets, Up to 16GB DDR3 1600/1333 MHz (Dual Channel) * Due to Windows 32-bit limitations, usable memory may be less than 4GB if more than 4GB is installed. |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics - 1 x D-Sub port (1920x1200) - 1 x HDMI port (4096x2160, HDMI 1.4a) - Max 1GB Shared Memory |
| Audio | Realtek® Audio CODEC, High Definition Audio (2/4/5.1/7.1 Channel) |
| LAN | Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
| Expansion Slots | 1 x PCI Express x16 slot, 1 x PCI Express x1 slot (PCI Express 2.0) |
| Storage Interface | Chipset: |
| - 1 x M.2 connector (SATA and PCIe 2.0 x4/x2 SSD support) | |
| - 2 x SATA 6Gb/s connectors (SATA3 0/1) | |
| - 2 x SATA 3Gb/s connectors (SATA2 2/3) (M2A connector shares bandwidth with SATA3 0 connector. Refer to "2-7 Internal Connectors" for details.) | |
| USB | Chipset: |

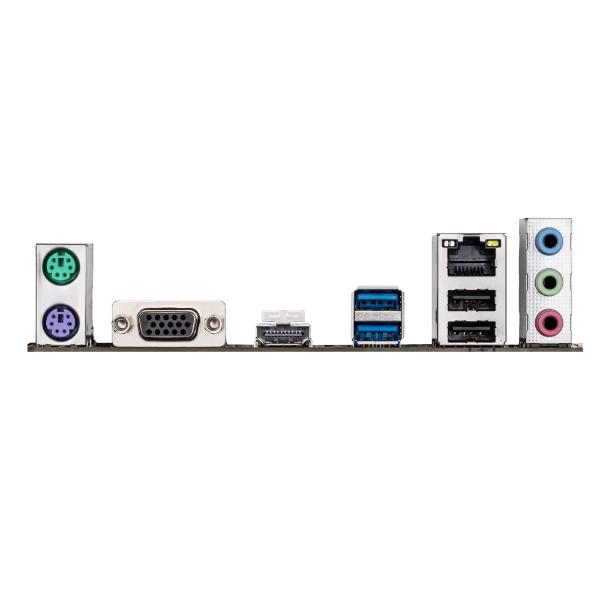

| - 2 x USB 3.0/2.0 ports on back panel - 6 x USB 2.0/1.1 ports (2 on back panel, 4 internal) | |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage, Temperature, Fan Speed, Overheating Warning, Fan Fail Warning, Fan Speed Control (fan dependent) |
| BIOS | 1 x 32 Mbit flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | Support for Q-Flash, APP Center (applications and functions may vary), EasyTune, EZ Setup, USB Blocker, Smart TimeLock, Smart Recovery 2, ON/OFF Charge |
| Bundled Software | Norton® Internet Security (OEM version), LAN bandwidth management software |
| Operating System | Supports Windows 10/7 |
| Specification | Details |
|---|---|
| Brand: | Gigabyte |
| Socket Type: | none |
| Chipset: | Intel H-series |
| Form Factor: | ATX |
| RAM Type: | DDR4 |
| Max RAM Capacity: | none |
| Expansion Slots: | PCIe 3.0 |
| Availability | Instock |
| Price Range | ₹5000 - ₹10000 |
